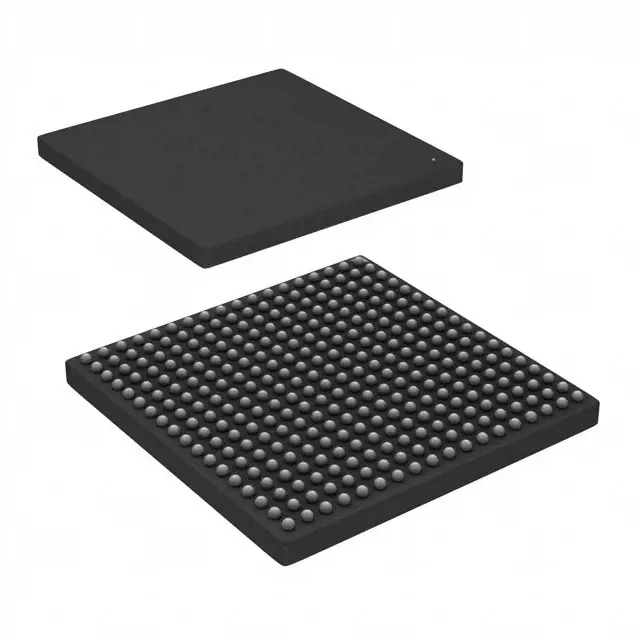

XC7A12T-2CSG325I

Images à titre indicatif uniquement

XC7A12T-2CSG325I

+Nomenclature

IC FPGA 150 I/O 324CSBGA

  • FabricantAMD Xilinx

  • Pièce fabricant #XC7A12T-2CSG325I

  • Package LFBGA-324

  • En stock1713

365 Garantie qualité 24h/24

7*24 Garantie de service 24h/24

90-Garantie après-vente 24h/24

Garantie produit authentique

Spécifications

Attribut Valeur
Package Tray
Series Artix-7
ProductStatus Active
NumberofLABs/CLBs 1000
NumberofLogicElements/Cells 12800
TotalRAMBits 737280
NumberofI/O 150
Voltage-Supply 0.95V ~ 1.05V
MountingType Surface Mount
OperatingTemperature -40°C ~ 100°C (TJ)
Package/Case 324-LFBGA, CSPBGA

Présentation

Equivalent

The XC7A12T-2CSG325I is a low-cost Artix-7 FPGA from Xilinx (now AMD). Equivalent alternatives include:
1. Intel (Altera) Cyclone V (e.g., 5CEA2)
2. Lattice ECP5 (e.g., LFE5U-12F)
3. Microchip PolarFire (e.g., MPF100T)
These offer similar logic density (~12K LUTs) and low-power features. For exact replacements, check AMD's Artix-7 family (e.g., XC7A15T, XC7A25T) with higher resources. Always verify pin compatibility and features.

Features

The XC7A12T-2CSG325I is a low-cost, low-power Artix-7 FPGA from Xilinx (now AMD). Key features:
- Logic Cells: 12,800
- DSP Slices: 40
- Block RAM: 720 Kb
- I/O Pins: 150 (supports LVDS, LVCMOS)
- Transceivers: None
- Process Technology: 28nm HPL (low power)
- Package: 325-ball CSG (0.8mm pitch)
- Speed Grade: -2 (moderate performance)
- Power Efficiency: Optimized for battery-powered/portable apps
- Configuration: Supports SPI, BPI, or JTAG
Ideal for embedded vision, motor control, and IoT due to its balance of performance and power efficiency.

Pinout

The XC7A12T-2CSG325I is a 325-pin FPGA from Xilinx's Artix-7 family, packaged in a CSG325 (Chip-Scale Grid Array).
Key Functions:
- Logic Cells: ~12,800
- DSP Slices: 40
- Block RAM: 720 Kb
- I/O Pins: 150 (supports LVDS, LVCMOS, etc.)
- Transceivers: None (base Artix-7 model)
- Clock Management: MMCMs & PLLs
Designed for low-power, cost-sensitive applications like embedded systems, IoT, and industrial controls.

Manufacturer

The XC7A12T-2CSG325I is a Field-Programmable Gate Array (FPGA) manufactured by Xilinx, now part of AMD following its acquisition in 2022.
Xilinx (AMD) is a leading semiconductor company specializing in adaptive computing solutions, including FPGAs, SoCs, and development tools. Known for innovation in reconfigurable hardware, Xilinx products are widely used in telecommunications, automotive, aerospace, and AI applications.
The XC7A12T belongs to the Artix-7 family, offering a balance of low power, cost-efficiency, and performance for embedded systems.

Application

The XC7A12T-2CSG325I, a low-cost Artix-7 FPGA from Xilinx (now AMD), is used in:
- Embedded Systems – Compact, power-efficient designs.
- Industrial Automation – Motor control, sensor interfacing.
- Consumer Electronics – Drones, smart devices.
- Communications – Low-bandwidth networking.
- Medical Devices – Portable diagnostic equipment.
- Automotive – ADAS, infotainment.
Ideal for cost-sensitive, low-power applications requiring moderate logic density.

Package

The XC7A12T-2CSG325I is an Artix-7 FPGA from Xilinx (now AMD). It comes in a CSG325 package, which is a 325-ball Chip-Scale Grid Array (CSGA) with a 0.8mm ball pitch. This package is compact, RoHS-compliant, and suitable for space-constrained applications. The "I" suffix indicates an industrial temperature range (-40°C to +100°C).
